24V High Brightness RGBW LED Light Strips Flexible 15.6 W 72 LEDs / M

Product Categories
LEDCORP LIGHTING LIMITED
Contact Now

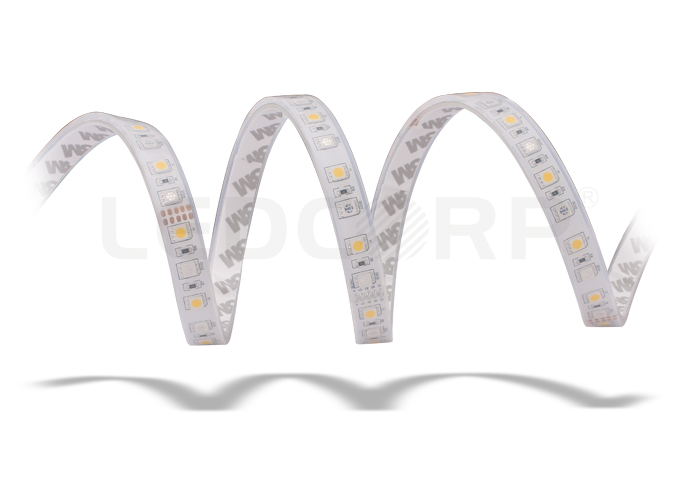

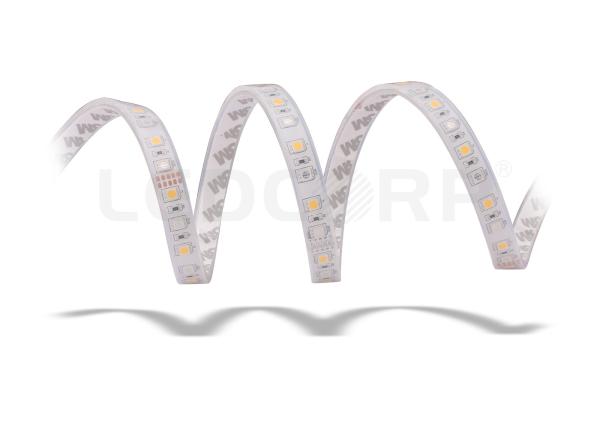

24V High Brightness RGBW LED Light Strips Flexible 15.6 W 72 LEDs / M

  • 1
  • 2

Brand Name : LEDCORP

Model Number : LC72-N5050-RGBW-24

Certification : UL/CE/RoHS

Place of Origin : China

MOQ : 100meters/20reels

Price : Negotiation

Payment Terms : T/T , PayPal

Supply Ability : 500,000mters per month

Delivery Time : 15 working days

Packaging Details : 12KG/Carton

LED : 5050

Qty/m : 72 LEDs/m

Voltage : 24V

Power : 15.6 w/m

Color : RGBW

Control : RGBW Controller

CCT : 2700-6500K

Ra : 85

Angle : 120°

Lifespan : >35000 hrs

Warranty : 3 yrs

Contact Now

24V RGBW LED 5050 Light Strips Flexible 15.6 W 72 LEDs/m 24V High Brightness RGBW LED Light Strips Flexible 15.6 W 72 LEDs / M 5050 72 RGB+W.pdf

24V High Brightness RGBW LED Light Strips Flexible 15.6 W 72 LEDs / M

Technical details:

Details

Item

Unit

Specification

Physical data

LED type

SMD

5050SMD

LED Qty /meter

LED/m

72

Dimensions

mm

12*2*5000 (W*H*L)

Type of protection

IP

IP20 / IP65

Working temperature

°C

0-40°C

Electrical data

Power

w/m

15.6 W/m

Voltage

VDC

12 (24 option)

Optical data

Beam angle

degrees

120

Light color

　

RGB + White

Color BINs

　

3 Bins
Wave Length

nm

Red : 619 - 635 nm

Green : 510 - 530 nm

Blue : 460 - 480 nm

Color rendering index

CRI

70-90

Order reference

HS code

94054090

Part. no

LC72-N5050-RGBW-IP20-24

LC72-W5050-RGBW-IP65-24

LC72-W5050-RGBW-IP68-24

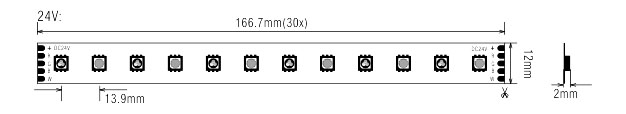

Dimension:

24V High Brightness RGBW LED Light Strips Flexible 15.6 W 72 LEDs / M

24V High Brightness RGBW LED Light Strips Flexible 15.6 W 72 LEDs / M

24V High Brightness RGBW LED Light Strips Flexible 15.6 W 72 LEDs / M

24V High Brightness RGBW LED Light Strips Flexible 15.6 W 72 LEDs / M

24V High Brightness RGBW LED Light Strips Flexible 15.6 W 72 LEDs / M

24V High Brightness RGBW LED Light Strips Flexible 15.6 W 72 LEDs / M

24V High Brightness RGBW LED Light Strips Flexible 15.6 W 72 LEDs / M

24V High Brightness RGBW LED Light Strips Flexible 15.6 W 72 LEDs / M

24V High Brightness RGBW LED Light Strips Flexible 15.6 W 72 LEDs / M

Packing details:

Part No.

HS code

Packaging unit

meters per box

reels per box

Dimensions(mm) LxWxH

Gross weight

Volume(cbm)

LC60-N5050-RGBW-IP20

94054090

One Pack

5m

1reel

150*150*12

0.11kg

0.00027

Shipping box

250m

50reel

500*350*250

12kg

0.04375

LC60-W5050-RGBW-IP65

94054090

One Pack

5m

1reel

220*220*13

0.22kg

0.00063

Shipping box

100m

20reel

500*350*250

12kg

0.04375

Application area:

1. Architectural decorative lighting
2. Archway, canopy & bridge edge lighting
3. Amusement park, theater & aircraft cabin mood lighting
4. Emergency hallway lighting
5. Auditorium walkway lighting.
6. Stairway accent lighting
7. Concealed lighting
8. Backlighting for signage letters
9. Cove lighting

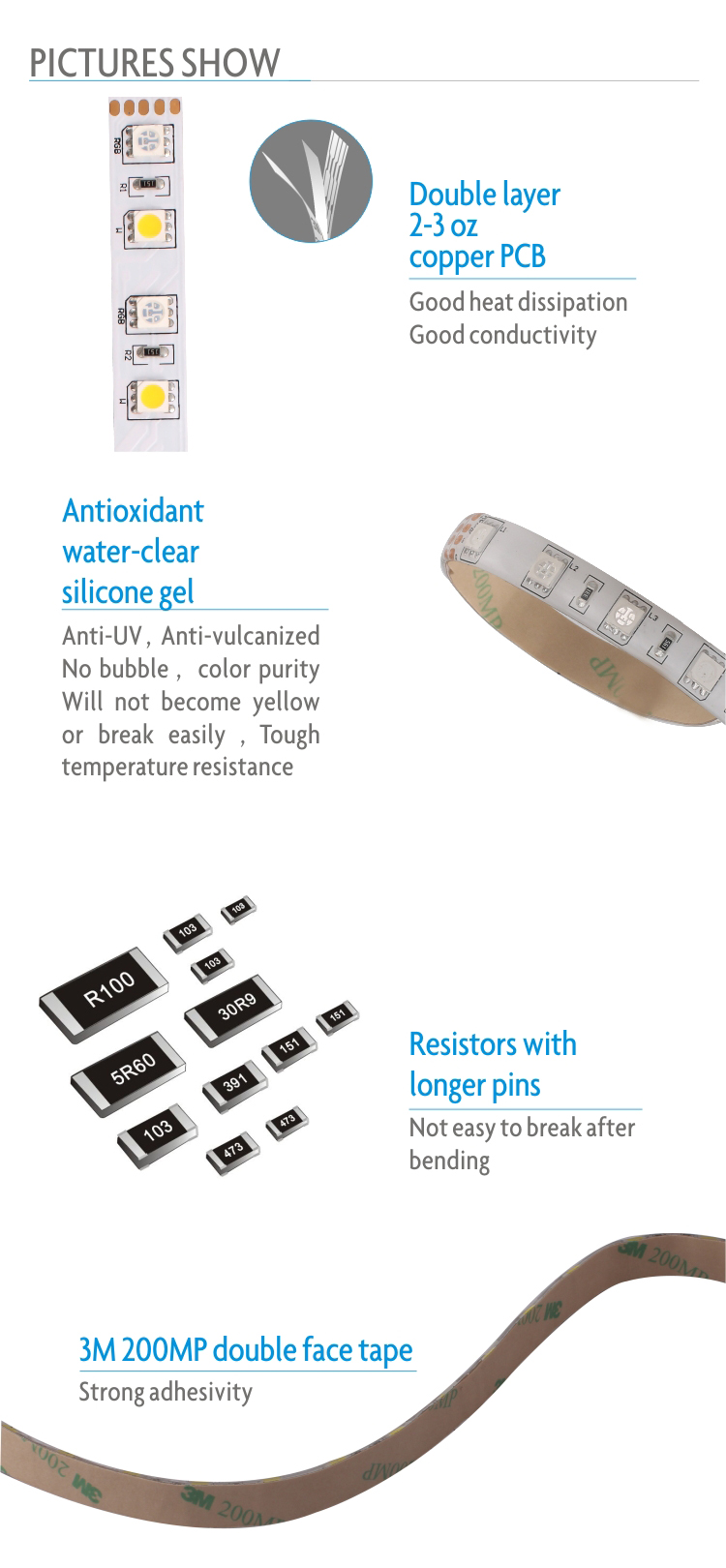

Product advantages:

1. More Lumens per watt

2. Less Lumens depreciation, <0.3% in 1000h, <3% in 10000h

3. No faulty of LEDs, 0% in 10000h

4. Uniform light, even light output

5. Consistent light color of LEDs

6. Consistant brightness from the front to the end
